TEF Tuner Extra
€300.00
Geen voorraad

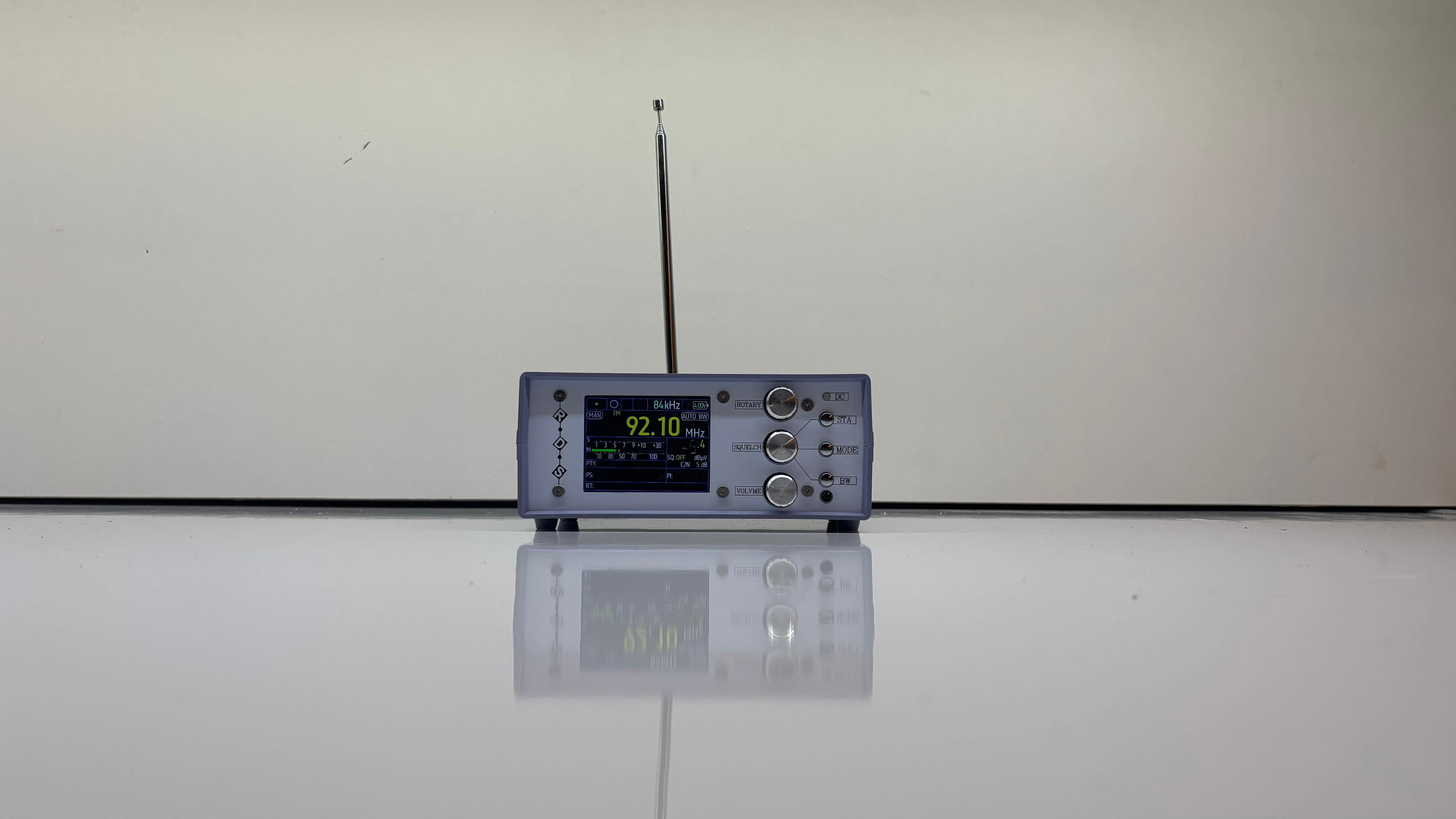

The TEF6686 desktop receiver is perfect for receiving a wide range of FM signals from 65MHz to 108MHz and AM signals from 144kHz to 27MHz. Made from durable ABS material, this radio offers reliable performance even in challenging conditions. Thanks to the built-in automatic channel closing, it is easy to quickly switch between stations, while the high coverage ensures excellent international radio reception.
This is the extended version of the original TEF tuner.
This version includes the following extras:
WiFi connectivity for XDR-GTK, RDS Spy and Stationlist
Bluetooth audio
Touchscreen
Spectrum monitor
Extensive RDS including Radiotext+, ClockTime, ECC, AF overview and RDS quality indicator
Connection for UHF Frontend allowing reception on 70cm, 35cm 23cm and 13cm amateur bands.
Operating voltage 9-15V (+/- 250mA, with UHF module +/- 500mA)
Design by PE5PVB, click here for more information.
BAND: Switch between 3m, 70cm, 35cm, 23cm, 13cm and AM shortwave.
BAND LONG PRESS: Go to standby
BW: Switch between different bandwidths (or automatic)
BW LONG PRESS: Switch between mono or auto stereo
MODE: Switch between manual tuning or auto search, or exit the menu
MODE LONG PRESS: Open the menu
ROTARY PRESS: Switch between
step size (10kHz/50kHz/100kHz) or operate the menu
ROTARY LONG PRESS: Switch Channel equalizer and/or Multipad filter on/off
SQUELCH: Set squelch level (muting), if fully clockwise, stereo squelch is active.
